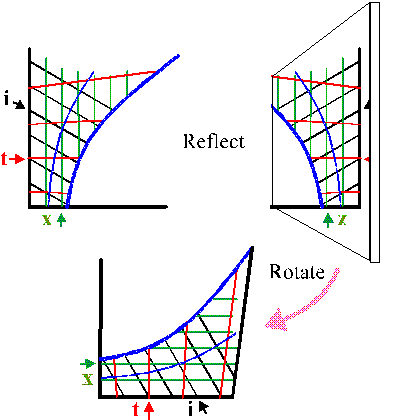

The Psychrometric Chart is the same as the Mollier diagram, first reflected in a vertical mirror and then rotated through 90 degrees:

Diagram
